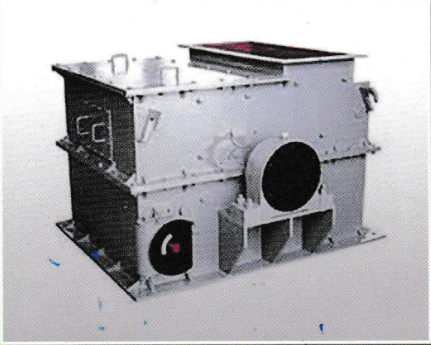

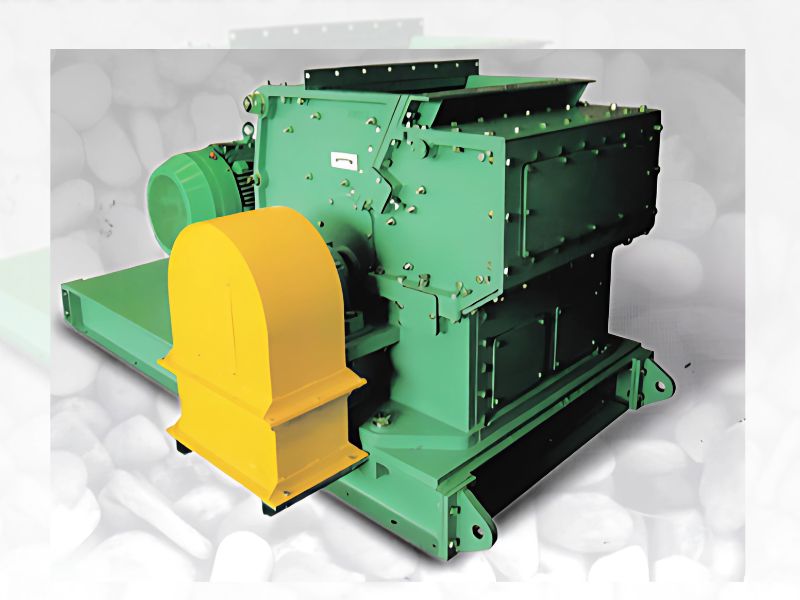

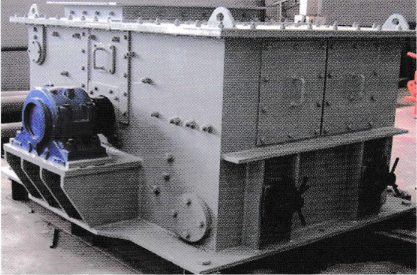

Non Reversible Hammer Crusher

Masyc Non Reversible Hammer Crusher is manufactured based on time tested proven technology.

Function: Masyc Non Reversible Hammer Crusher is used for size reduction/crushing. Material is broken first by impact between hammer and material and then by a scrubbing action (attrition) of material against breaker plate.

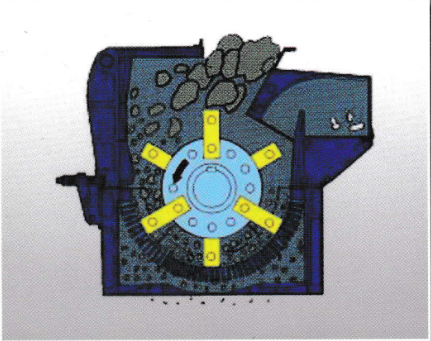

Size reduction starts by impact, when the hammer strikes the materials as it enters the crushing zone. Shattered fragments are swept down into final crushing zone for further reduction at the pinch points between the hammers and the breaker plate. Oversize material remains in the machine until it is reduced sufficiently to fit through the hammer and breaker plate opening.

This crusher is available with adjustable cages, a feature that permits the user to make changes in the product size of the crushed product. The tighter the clearance between breaker plate and hammer, the smaller will be the particle size of the crushed product.

Application: Masyc Non Reversible Hammer Crusher is used for hard coal, lignite, limestone, gypsum and other soft and medium hard material.

General Feature: Masyc Non Reversible Hammer Crusher is of rugged structural design, easy to maintain high throughput and low wear.

Welded casing

Screwed lining with high carbon steel plates.

Hammer path (one way) with wear resistant breaker plate which is mechanically adjustable.

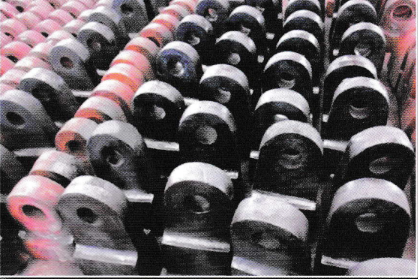

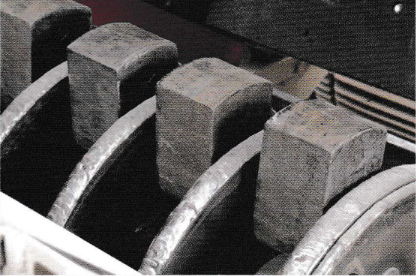

Hammer head made of manganese steel or chrome moly alloy cast steel.

Dust proof spherical roller bearing provided.

The crusher is provided with tramp iron deflected and tramp iron tray so that crusher is protected from un-crushable material.

 V-belt drive with pulley.

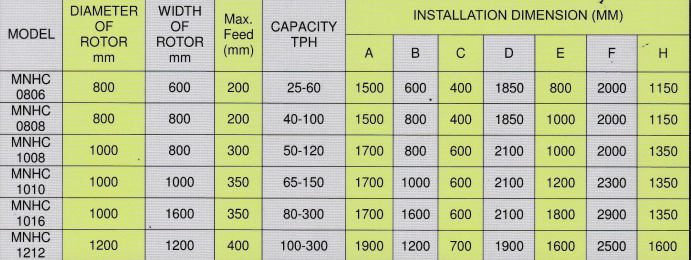

The Throughout capacity is based on Coal with 90% of final product of smaller than 6mm

Above specified dimension and throughput specified are approximate

We reverse the right of modification

Other machine Sizes available on request
