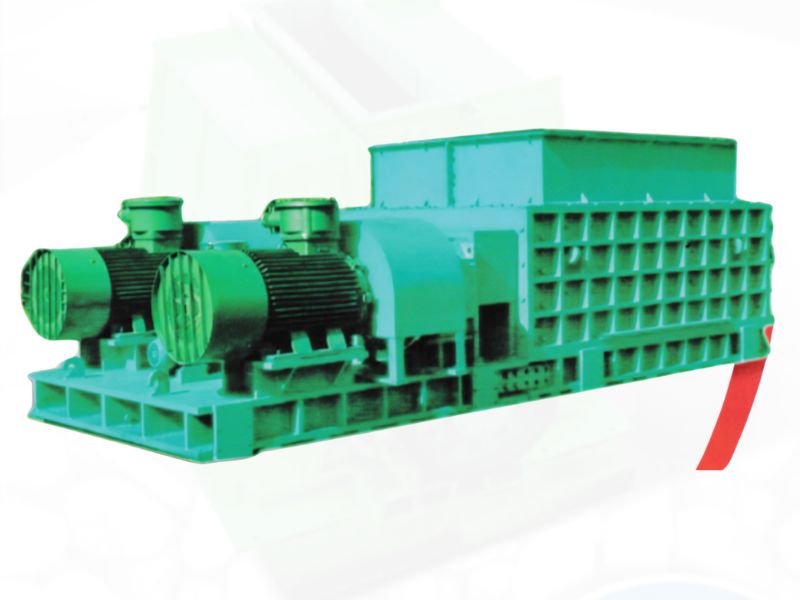

Toothed Double Roll Crusher

Masyc Toothed Double Roll Crusher is manufactured based on proven technology.

Function: Masyc Toothed Double Roll Crusher is used for size reduction / crushing. Material is crushed by high pressure between two rolls. The crushing starts as soon as material enters the crusher and falls on the toothed segment. High impact on the circulating crushing tooth segment reduces the material into considerable sizes. Material, while passing through both the toothed double rolls get crushed into desired size.
Toothed double roll crusher produces more uniform product than any other type of crusher. The crusher having separate drives has wide range of adjustment which makes possible to conform to tough specifications regarding sieve analysis of the product.
As the material is crushed only once while it passes through the gap the percentage of fines is much less. By proper selection of the gap, the oversize can be minimised. The whole circumference is used for crushing, thus complete utilisation of the wearing surface is possible.

Application: Masyc Toothed Double Roll Crusher is used for crushing various materials in process industry such as Coal, Lignite, Limestone & Gypsum etc.

General Feature: Masyc Toothed Double Roll Crusher is of compact design, simple maintenance, high throughput, uniform material with lesser dust / fines generation.

Welded Robust Housing.

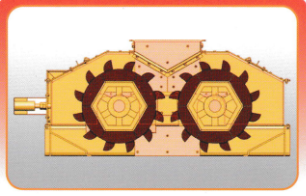

Roller cores are polygon in shape with surface-ground supports for tooth segment.

Crushing tooth segments individually replaceable without Lifting the Crusher Roll.

Locking of the crushing tooth segments by means of dovetail guides and fastening by screwed bolts.

One roll is fixed and other is movable. This helps the uncrushable material to pass through
